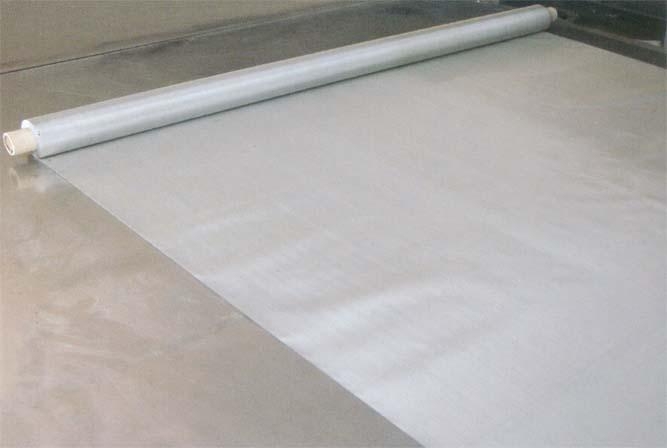

plain weave stainless steel wire mesh a kind of weaving patterns,each warp wire (length) and each waft wire (width) pass over one and under the next adjacent wire.
 |
 |
 |
 |
 |
 |
Specification
|
|
Specification List of Stainless Steel Wire Mesh |
|
||||||
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight(LB) /100 Square Foot |
||||
|
Inch |
MM |
Inch |
MM |
|||||
|
1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
41.1 |
||
|
2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
51.2 |
||
|
3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
56.7 |
||
|
4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
104.8 |
||
|
4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
57.6 |
||
|
5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
54.9 |
||
|
6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
48.1 |
||
|
8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
41.1 |
||
|
10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
41.2 |
||
|
10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
26.1 |
||
|
12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
42.2 |
||
|
12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
31.6 |
||
|
14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
49.8 |
||
|
14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
37.2 |
||
|
16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
34.5 |
||
|
18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
34.8 |
||
|
20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
55.2 |
||
|
20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
34.4 |
||
|
24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
31.8 |
||
|
30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
34.8 |
||
|
30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
29.4 |
||
|
30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
16.1 |
||
|
35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
29.0 |
||
|
40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
27.6 |
||
|
50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
28.4 |
||
|
50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
22.1 |
||
|
60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
23.7 |
||
|
60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
20.4 |
||
|
70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
20.8 |
||
|
80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
23.2 |
||
|
80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
16.9 |
||
|
90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
15.8 |
||
|
100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
14.2 |
||
|
100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
11.0 |
||
|
100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
8.3 |
||
|
110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
12.4 |
||
|
120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
11.6 |
||
|
150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
7.1 |
||
|
160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
5.94 |
||
|
180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
6.7 |
||
|
200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
6.2 |
||
|
250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
||
|
270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
||
|
300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
||
|
325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
||
|
400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
3.3 |
||
|
500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
||
|
635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
||

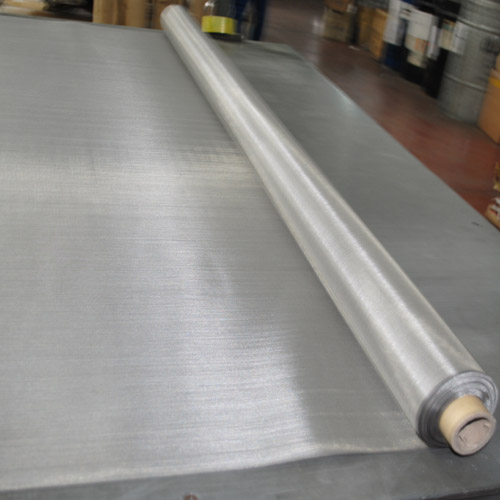

stainless steel fine meshstainless steel fine mesh also named stainless steel high mesh mesh.
materials: AISI 304,304L,316,316L,etc.
